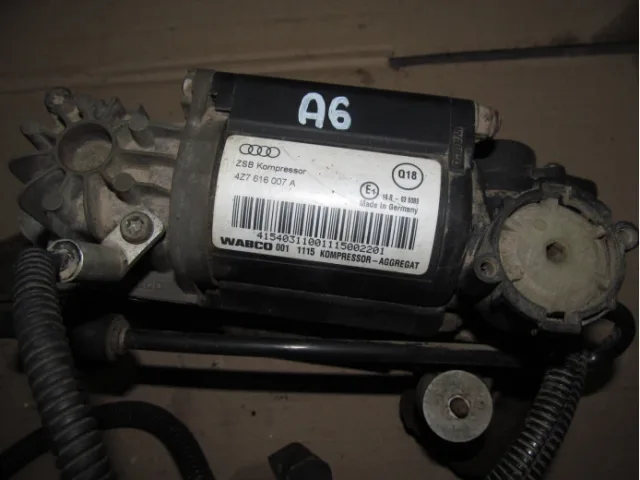

Air suspension today is found on many cars in both the mid-range and premium segments. This system is responsible for ride smoothness, allows changing ground clearance, and adapting the vehicle's behavior to different driving conditions. The heart of this design is the compressor, which pumps air into the lines. In this material, we will take a detailed look at where the air suspension compressor is hidden, and using specific examples — Touareg and Audi Q7 — we will show how to find it in these popular models.

Purpose of the compressor in the air system

In essence, the compressor is an electric pump that supplies compressed air to the air springs. The proper functioning of this unit directly affects:
  • the vehicle's ground clearance;
  • the degree of suspension stiffness;
  • overall comfort and directional stability.
When the compressor fails or starts to malfunction, the vehicle body noticeably "squats," corresponding errors appear on the dashboard, and the ability to change ground clearance is lost.

Typical compressor mounting locations

There is no single scheme according to which all automakers mount the compressor — it all depends on the specific model and layout. However, in most cases, it can be found in the following areas:
  • in the lower part of the body, inside a protective casing;
  • near the rear axle;
  • sometimes — in the front of the vehicle, behind the wheel arch liner or under the bumper.
Engineers try to place the compressor in such a way as to protect it from dirt, moisture, and impacts, while still leaving access for routine maintenance and proper cooling.

Compressor location on Volkswagen Touareg

Volkswagen owners are often interested in where exactly the air suspension compressor is located on the Touareg.
On most versions of the VW Touareg, this unit is mounted at the bottom of the vehicle, near the rear axle on the right side, and is covered by a plastic casing. To access it, you typically have to remove the underbody protection or the wheel arch liner.

Where to look for the compressor on Audi Q7

For those who want to find out where the air suspension compressor is located on the Audi Q7, it is worth knowing: the design solution here is very similar to the Touareg, since both models are built on a common platform.
On the Audi Q7, the compressor is mounted under the floor, near the rear right wheel, in a separate housing. To work on it, you will need a lift or a service pit.

Signs of compressor malfunction

Even knowing where the air suspension compressor is located, it is useful for the driver to understand which symptoms will indicate its failure:
  • the suspension takes too long to raise the body or completely stops responding to commands;
  • extraneous sounds or humming come from the compressor;
  • errors of the air system appear on the dashboard;
  • the vehicle noticeably sags on one wheel or around the entire perimeter.
When such signs appear, first of all, it is worth checking the compressor power supply, the condition of the wiring, fuses, and relays.

Summary

Now you understand where the air suspension compressor is located in a car and how to find it yourself. On the Touareg and Audi Q7, it is located under the floor, near the rear right wheel, in a protective housing. In other models, the unit may be located in the area of the rear axle or behind the front wheel arch liners. If the compressor starts making extra noise or the air suspension stops working correctly, do not delay diagnostics. Timely detection of a malfunction will help avoid expensive repairs in the future.
