A leaf spring is one of the oldest and most reliable elements of a vehicle's suspension. Despite the development of modern technologies, leaf springs are still widely used, especially in commercial vehicles and trucks. But what is a car leaf spring and how is a leaf spring designed? Let's figure out in this article why it is needed, where it is used, and what a leaf spring looks like in a car.

What is a leaf spring

In simple words, a leaf spring is an elastic suspension element designed to dampen impacts and vibrations from the road surface. It helps to evenly distribute the load from the car body to the axle and wheels, ensuring smoothness of ride and stability of the vehicle. The basis of the design is a curved steel or composite plate (or a set of plates) that can deform under load and return to its original position. In short, a leaf spring is a device that supports the mass of the car and helps the suspension cope with road irregularities.

What is a car leaf spring and how does it work

To understand what a car leaf spring is, you need to know that it not only holds the body at a certain height, but also:
  • smooths out impacts from irregularities,
  • stabilizes the car during loading and sudden braking,
  • reduces vibrations and noise in the cabin.
When driving over bumps, the leaf spring bends under load, absorbs the impact energy and gradually returns to its original position. Thus, it dampens sharp oscillations and reduces the load on the body and passengers.

How a leaf spring is designed

1. Leaf spring

This is a classic version consisting of several steel plates stacked on top of each other in descending order of length. The top plate is called the main plate; it is most often attached to the vehicle frame. The plates are held together by a center bolt and can slide relative to each other.

2. Parabolic leaf spring

A more modern and lighter version. The plates in such a spring have variable thickness, which reduces weight and increases comfort.

3. Composite leaf springs

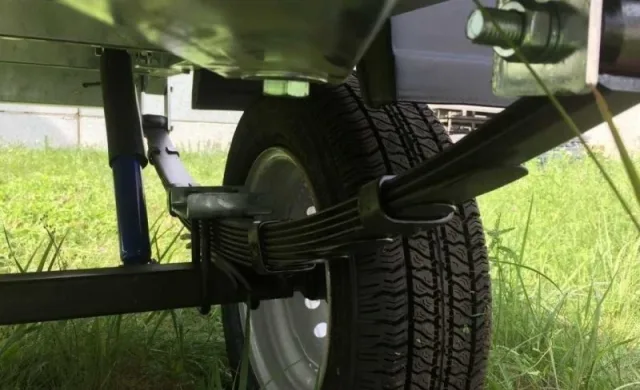

Made from modern materials - fiberglass and resins. They are lighter, do not rust and last longer, but so far they are found mainly on light commercial vehicles. If you don't know what a leaf spring looks like, it is a curved metal "arc", often black, installed along the wheel axle.

What is a leaf spring in a car and where is it used

Leaf springs are most often installed:
  • on the rear axle of pickups and trucks,
  • on buses and trailers,
  • sometimes - in the front suspension of heavy SUVs and old cars.
It is important to understand what a leaf spring is in a car in order to properly approach its maintenance and timely replacement.


How often should leaf springs be replaced

There is no definite service life - it all depends on operating conditions, load and road quality. But there are recommendations:
  • on diesel and trucks, check leaf springs every 20-30 thousand km;
  • on turbo diesel with high load - diagnostics every 15-20 thousand km;
  • with severe sagging of the rear of the car or the appearance of squeaking - an urgent check is necessary.
Thus, if you are wondering how often leaf springs need to be replaced, focus not only on mileage, but also on the appearance and driving feel.

Signs of leaf spring wear

  • The car "sagged" on one side;
  • Increased rocking when driving;
  • Squeaking or clicking when hitting irregularities;
  • Cracks or traces of corrosion on the plates.
If you notice one of these signs, the leaf spring needs to be replaced or repaired.

Leaf spring: what is it and what are the advantages

Now that you know what a leaf spring is, it is worth noting its advantages:
  • high reliability;
  • simplicity of design;
  • long service life;
  • ability to withstand heavy loads.
That is why leaf springs still remain relevant in vehicles where endurance and stability are important.
What is a car leaf spring? It is a key suspension element, especially in those vehicles where load capacity and stability are important. Now you know how a leaf spring is designed, what a leaf spring looks like, what a leaf spring is in a car, and also how often to check - especially on diesel or turbo diesel. Timely maintenance and diagnostics of leaf springs are the key to the reliability and safety of your car.
