Before finding out where the throttle valve is located, it is worth understanding how it works. This unit regulates the volume of air entering the engine's intake manifold. The wider the valve opens, the more air enters the cylinders, and the higher the RPM and power. The valve is controlled mechanically (via a cable from the gas pedal) or electronically (using sensors and a control unit). Modern cars more often use an electronic throttle system.
Where is the throttle valve located in a car
The throttle valve in a car is located on the intake tract between the air filter and the intake manifold. That is, air from the filter passes through hoses and reaches the valve, and then enters the engine. To find it, open the hood and trace the path from the air filter housing to the engine. You will see a tube (or hose) going to a metal or plastic block - this is the throttle body. For most cars, the following location is typical:
- In gasoline engines, the throttle valve is usually located at the front or top of the engine, closer to the battery or radiator.
- In diesel engines, the throttle valve may be less pronounced or even absent (in some older diesels), but in modern diesels it is also present - for example, for emission control.
- In turbocharged engines, it may be closer to the turbocharger, which slightly complicates access.

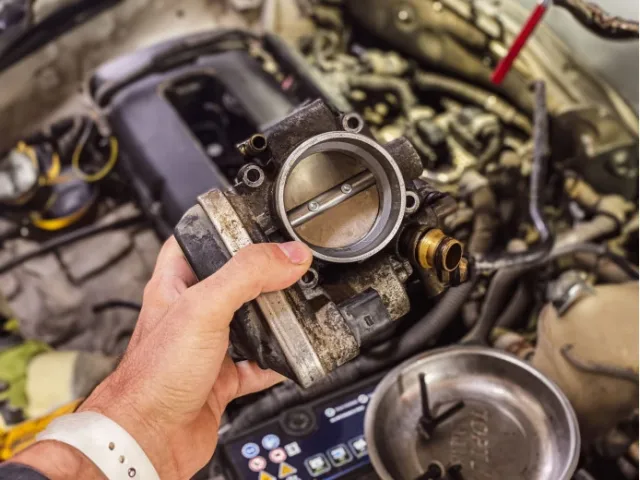

What does the throttle valve look like
If you are wondering where the throttle valve is, it is important to imagine what it looks like. It is usually a round metal part with a diameter of 5-10 cm (depending on the engine), inside which a movable flap is installed, rotating around an axis. When opened, it allows air to pass; when closed, it restricts the air supply. This flap is controlled by:
- a cable - in older cars: when pressing the gas pedal, the cable pulls a lever, opening the flap.
- an electronic actuator - in modern cars: the control unit itself adjusts the opening angle of the flap depending on the gas pedal position, temperature, RPM, and other parameters.
Signs of problems with the throttle valve
If you notice unstable engine operation, it may be worth checking whether the valve is dirty. Typical symptoms:
- Fluctuating idle speed.
- Delayed response to the gas pedal.
- Increased fuel consumption.
- ECU errors related to the air intake system.
If the question arises of where the throttle valve is in a car, it may mean that you want to clean or replace it. And this is indeed a good solution when the above symptoms appear.
How to independently find and inspect the throttle valve
- Open the hood and find the air filter housing.
- Trace the hose that goes from the filter to the engine - at its end there will be the throttle body.
- Remove the hose if necessary - it is secured with clamps. Under it, you will see a metal flap inside a round opening.
- Inspect the surface of the flap: if you see black carbon deposits, it may be time to clean.
- If necessary, use an aerosol throttle cleaner, following the instructions.
When to contact a specialist
If you are not sure where the throttle valve is, or doubt your abilities, it is better to contact a service center. This is especially relevant for cars with electronic throttle control, where improper intervention can cause errors and malfunctions. Now you know where the throttle valve is in a car and how to find it. This is an important element that directly affects engine behavior and driving comfort. At any signs of unstable engine operation, do not ignore this unit. Regular inspection and cleaning of the throttle valve will help keep the engine in excellent condition and avoid unnecessary costs.
