Road safety directly depends on the efficiency of the braking system. It is what allows you to stop the car in time, prevent a collision, and maintain control. Many people wonder what a braking system is, how it is designed, and what differences exist between passenger cars and trucks. In this article, we will take a detailed look at how a car's braking system works, including popular technologies such as ABS, as well as the specifics of how brakes work on a KamAZ.

What is a braking system

A braking system is a set of components and mechanisms designed to slow down and completely stop a vehicle. It also allows the car to be held stationary (for example, when parked on a slope). The system must operate efficiently, reliably, and without delays in any operating mode. To understand how a braking system is designed, let's look at its main elements.

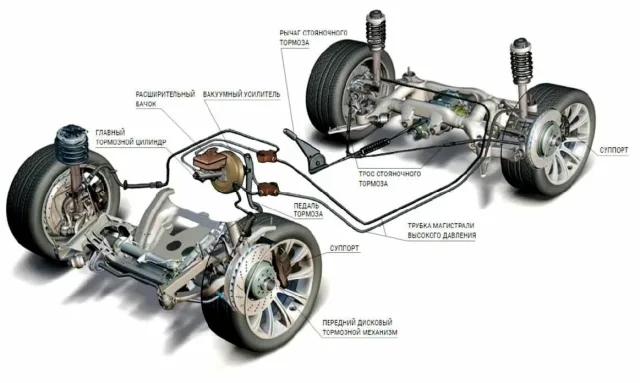

How a braking system is designed

In a classic passenger car, the braking system consists of:
  • Brake pedal - a control element that acts on the hydraulic part;
  • Master brake cylinder - generates pressure in the circuit;
  • Brake fluid - transmits force from the pedal to the working mechanisms;
  • Calipers, pads, and discs (or drums) - perform direct braking of the wheels;
  • Vacuum booster - makes pressing the pedal easier for the driver;
  • ABS system - prevents wheel lock-up during hard braking.
In trucks such as KamAZ, a pneumatic braking system is used - it differs from the hydraulic one in design, operating principle, and components.

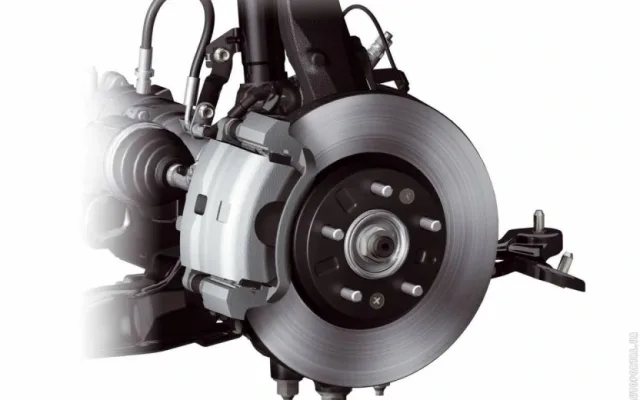

How a car's braking system works

Operating principle:

  1. The driver presses the brake pedal.
  2. Pressure is created in the hydraulic system.
  3. Brake fluid transmits force to the wheels.
  4. Calipers press the pads against the discs.
  5. Friction occurs - the car slows down or stops.
The system works with each axle separately but is combined into a common circuit for even braking.


How the ABS braking system works

Many modern cars are equipped with an ABS system. The question arises: how does the ABS braking system work, and how does it differ from the classic one? ABS (anti-lock braking system):
  • Prevents wheel lock-up during emergency braking;
  • Automatically regulates pressure in each circuit;
  • Allows you to maintain control of the car even when the brakes are applied at full power.
It works as follows:
  1. Speed sensors detect wheel rotation.
  2. When there is a risk of lock-up, the system releases pressure.
  3. The wheel continues to rotate without losing traction.
  4. This happens dozens of times per second.
Thus, the ABS braking system makes driving safer, especially on slippery roads.

How the KamAZ braking system works

Now let's figure out how the KamAZ braking system works. Trucks are characterized by high mass and require special solutions. Features of the KamAZ braking system:
  • A pneumatic drive is used - air, not fluid, actuates the brake mechanisms;
  • There are main, reserve, parking, and emergency systems;
  • Pressure is created by a compressor and accumulates in air reservoirs;
  • When the pedal is pressed, air flows to the brake chambers, pressing the pads against the brake drums.
This approach ensures high reliability and efficiency, even when the vehicle is fully loaded.
Now you know what a braking system is, how it is designed, and how the operation differs in passenger cars and on KamAZ. We also covered how the ABS braking system works and why it plays a key role in modern cars. Brakes are not just a mechanism, but the foundation of safety. And knowing how they are built helps you better understand the capabilities of your car.
