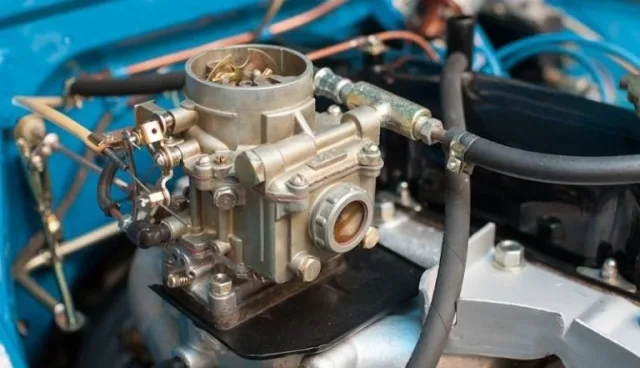

If you find that gasoline is spraying from the carburetor into the air filter, this is a serious symptom that should not be ignored. This phenomenon signals malfunctions in the fuel system or intake tract, which affects engine stability, increases fuel consumption, and creates a fire risk.

Why fuel gets into the air filter

This situation occurs when fuel does not move along the standard route. Let's look at why gasoline sprays into the air filter and what breakdowns are usually the culprits:
  1. Incomplete valve closure
    If the intake valves do not seat tightly, during the compression stroke part of the air-fuel mixture is pushed back through the carburetor and settles in the air filter.
  2. Camshaft wear
    A worn camshaft disrupts the coordination of valve timing phases, causing the intake valves to operate incorrectly, and fuel is thrown in the reverse direction.
  3. Incorrect ignition timing
    Too early an advance angle provokes ignition before the intake valve has time to close. As a result, the burning mixture partially goes toward the carburetor and air filter.
  4. Clogging or sticking of the needle in the float chamber
    Then the fuel level in the chamber becomes higher than allowed, and it begins to overflow into the air tract, especially after the engine stops.
  5. Carburetor malfunctions
    Depressurization, worn seals, displaced diffuser — all this leads to abnormal operation of the device, and fuel gets into the wrong channels.
  6. Reverse wave in the intake manifold
    A contaminated or damaged manifold can create a shock wave that pushes the mixture back toward the carburetor.

How to fix the situation

To find out why gasoline sprays from the carburetor into the air filter, you need to check sequentially:
  • Valve clearances and condition;
  • Ignition timing and advance angle;
  • The float chamber and its adjustment;
  • The carburetor for leaks, contamination, and wear of parts.
In some cases, it is enough to clean the elements and replace gaskets. Sometimes you have to adjust the valve timing mechanism or replace valves. If you notice that gasoline is spraying from the carburetor into the air filter, know: this is not normal. The main causes lie in worn valves, disturbed valve timing phases, incorrect ignition, or a clogged carburetor. To avoid serious consequences, it is worth carrying out diagnostics and eliminating the problem in a timely manner.
